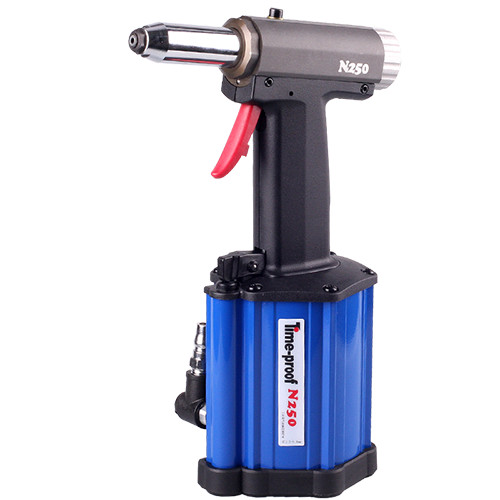

Pneumatic Hydraulic Riveting Tool, Air Riveter, Rivet Gun For 3.2-5.0mm Blind Rivets N250

PRODUCT DESCIPTION

Modular Design:

It is a further more approach in design of the tool range for reducing the costs and necessary stock items for production, maintenance and repair. Time-proof pneumatic riveting tool range possesses a number of parts assemblies interchangeable among different models. It remarkably helps to the distributors in service management.

Main Features:

• hydraulic parts with good quality seals.

Specifications:

Shanghai Time-proof Riveting Tools Manufacturing Co., Ltd. is a tools manufacturer company in China specialized in developing and manufacturing setting tools for blind rivets, blind rivet-nuts and other fasteners.

Time-proof tools earned the company good fame with experienced team of R&D and marketing. Professional pneumatic and hydraulic tool series adopts MD (Modular Design) technology and enjoys most of the tool parts for the series are interchangeable, promising convenient after-sale services for the tools distributors in China as well as overseas.

The company designs and manufactures hand riveting tools as well, by inviting customers with their own tools profiles design and private logo tools.Company also supplies Blind Fasteners (blind rivets, blind rivetnuts etc) and exports, with fully committments with fastener subcontractors in R&D, inspections and assuring the fasteners exported in good quality level and service level.

Introduction
Pneumatic/Hydraulic Riveting Tool Series

INNOVATION & UNIQUE FEATURE
The most remarkable features of the tools are the unique design of the tool bodies - air cylinders.
With vertical hexigon-shaped air cylinder design, it changes the triditional way of production. The air cyliners are closed, from top and bottom, by six screws instead of triditionally tapping the thread around the cylinder
body which requires considerable material thickness. With the unique cylinder closing methord, it makes the tools are comparatively lighter.
The unique design also results in the efficient production by its raw material of considerable long tubular shaped profiles. Without non-flexible moldings, the heigth of the cylinders can be flexibly worked out to apply wide range of tool strokes in the most economic way.
The strength of the cylinders are proved sufficient by its material of aviation grade aluminium alloy.
The unique cylinder design is patented.

BENEFITS
Helping to the manufacturer organizing wide range of the tool series, and further developing customized tools at lower costs; Helping to the distributors easily organizing full range of the tools; and conveniently carrying out after-sale services;

MODULAR DESIGN
It is a further more approach in design of the tool range for reducing the costs
and necessary stock items for production, maintenance and repair.
Time-proof™ pneumatic riveting tool range possesses a number of parts
assemblies interchangeable among different models. It remarkably helps to
the distributors in service management.

TOOL SERIES
Commercial series;
Industrial series;
Professional series;

COMMERCIAL SERIES:

Commercial series riveting tools consists of models, with prefix -Z: Z5000 , Z5000V , Z5000A , Z5000AV for setting blind rivets up to 4,8/5,0mm Z6400 , Z6400V for setting blind rivets up to 6,4mm.
The model codes with suffix -V indicates the tool with vacuum sucking system to hold the blind rivets in the tool nosepiece and automatic blow out the rest mandrel after setting.
Model codes with suffix -A indicates the tools are customized with traction power enhanced at sacrificing stroke, pairing Z5000 and Z5000A, Z5000V and Z5000AV.
Commercial series tools appearance is arranged all black but red trigger as default.
Commercial series tools are positioned to service DIY and semi-industrial segment of the market. Low costs oriented, production is arranged in most economic way with mass production. Except few unimportant material of parts, the key parts and parts assemblies do not compromise the quality, so as to prolong the tool life with simple basic maintenance by non-professional users.
Life test of the basic model Z5000 shows the tool start to loose setting stroke after setting approx. 120,000 pieces of blind rivets alu/steel multigrip 4,8 x 15 without washers (two strokes for one rivet). During the test, one set of jaws are substituded due to worn off after 54,000 pieces of rivets.

INDUSTRIAL SERIES:

Industrial series riveting tools consists of models, with prefix -N for rivets setting tools and prefix -M for rivet nuts setting tools:
N240, N240V for setting blind rivets up to 4,0mm
N250, N250V for setting blind riveets up to 4,8/5,0mm
N640C, N640CV, N640G, N640GV for setting blind rivets and structural blind rivets up to 6,4mm
N1100G for setting Monobolt or equivalent up to 10 mm
M2308 for setting blind rivet nuts up to M8
M2312 for setting blind rivet nuts up to M12
M2312L for setting split nuts with stroke up to 16mm
M2314 for setting blind rivet nuts up to M14
The model codes with suffix -V indicates the tool with vacuum sucking system to hold the blind rivets in the tool nosepiece and automatic blow out the rest mandrel after setting.
Model codes with suffix -C indicates the tool is designed for extra long stroke applying setting Monobolt, Interlock, Magnalock or equivalent; while suffix -G indicates the tool is designed for extra traction power applying setting Hemlok or equivalent.
Industrial series tools are aiming at market segment of general industrial and professional applications. The series includes blind rivets setting tools as well as blind rivet nuts/bolts setting tools, split nuts setting tool.
It is the main series of Time-proof™ pneumatic riveting tools range.
There are a number of functional extended nose assemblies and customized accessories for varies of applications in industial productions.
Time-proof enjoys an experienced R&D team servicing the fastening solutions for the customers.

PROFESSIONAL SERIES
Professional series riveting tools consists of models: QH264, for setting Lockbolts up to 6,4 mm
QH1100 for setting Lockbolts up to 10 mm TK164 for setting speed-rivets up to 6,4 mm and hammerdrive rivet setting tools, installation equipments.

Professional series riveting tools are kept being developed upon customers' requirements and promoted by service of fasteners installation solutions.
Industrial series and Professional series tools appearance are arranged with blue coloured air cylinders as default.
